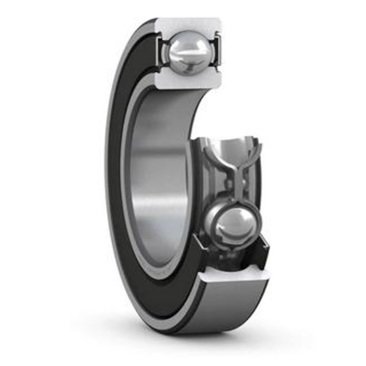

SKF 6002-2RSH/C3 Deep groove ball bearing with seals

Dimensions & Construction

• Bore diameter (d): 15 mm

• Outside diameter (D): 32 mm

• Width (B): 9 mm

• Bearing type: Single ‑ row deep ‑ groove ball bearing

• Seals: Rubber contact seals on both sides (2RSH = double‑sided contacting seals)

• Cage material: Steel (sheet ‑ metal) cage

• Radial internal clearance: C3 (greater than normal)

• Material: Bearing steel (rings and balls)

• Lubrication: Grease , sealed for life (no relubrication slot)

Load Ratings & Performance

• Basic dynamic load rating (C): ~ 5.85 kN

• Basic static load rating (C₀): ~ 2.85 kN

• Approximate fatigue / endurance load limit (Pᵤ): ~ 0.12 kN

• Limiting (maximum) speed (sealed bearing): ~ 14,000 rpm

• Reference (rated) speed (under ideal conditions): ~ 50,000 rpm

• Approximate mass: ~ 0.03 kg (≈ 30 g)

Geometry / Fit Details / Chamfers / Abutment Dimensions

• Minimum chamfer / fillet radius on rings (r₁ , r₂ min): ~ 0.3 mm

• Minimum shaft‑shoulder diameter (da min): ~ 17.0 mm

• Maximum housing ‑ shoulder diameter (Da max): ~ 30.0 mm (typical housing fit constraint)

Characteristics & Typical Use Cases

• As a sealed deep ‑ groove bearing, 6002 ‑ 2RSH/C3 supports primarily radial loads, but can also sustain limited axial loads in both directions when required.

• The double ‑ sided rubber seals help retain grease and prevent dust , dirt or moisture ingress - making the bearing suitable for environments where protection and low ‑ maintenance are desired.

• The C3 internal clearance allows for slightly more internal play , which is useful if there’s thermal expansion , shaft/housing misalignment , or moderate deformation under load.

• Its size (15 × 32 × 9 mm), decent load capacity and sealed design make it appropriate for small to medium ‑ size shafts , motors , pumps , light machinery , appliances , and similar mechanical applications requiring reliability and reduced maintenance.
